• AISI 304 quality stainless steel

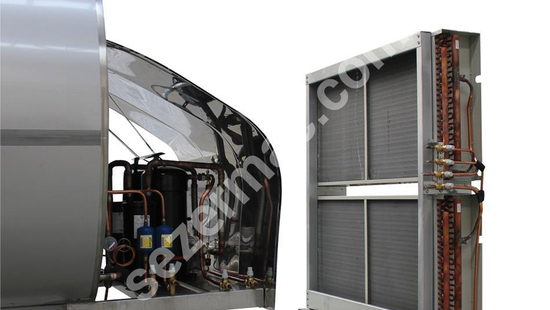

•one. The wall base is 2 mm and there is a 0.8 mm Ep type laser welded cooler evaporator surface coupled to the wall.
• Insulated wall is 2 mm in tanks with a capacity of 5000 lt - 12000 lt.
• Cooler unit and tank body are mounted on a solid chassis.
• There are 2 0.34hp 33d / d reducers and a stainless steel mixer connected to it in 6000-12000 lt tanks.
• Insulation range is 60 mm thick and insulated with HCFC-free water-based high-density polyurethane foam material.
• Product outlet DN 50 is butterfly valve with male union.
• There is AISI 304 quality stainless steel Ø 500 mm manhole cover on the top.
• There is Ø 100 mm product entry on the manhole cover.
• There is Ø 90 ventilation grille on the top.
• There is a manual measurement scale with a calculation table with a sensitivity of 3% - 4%.
• It has anti-slip AISI 304 quality ladder.
• Design with zero liquid inside during discharge.
• Welded areas are 1st class Argon TIG welding and 1st class smooth polished.
• There are adjustable foot bolts on the chassis.
