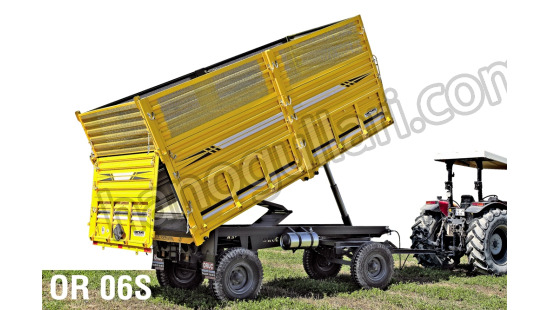

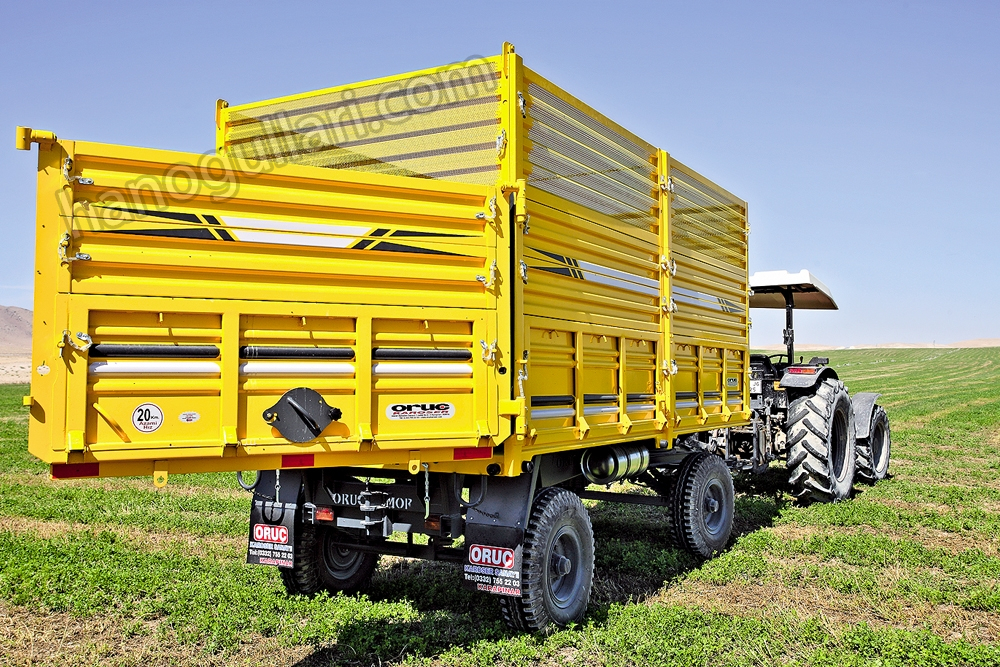

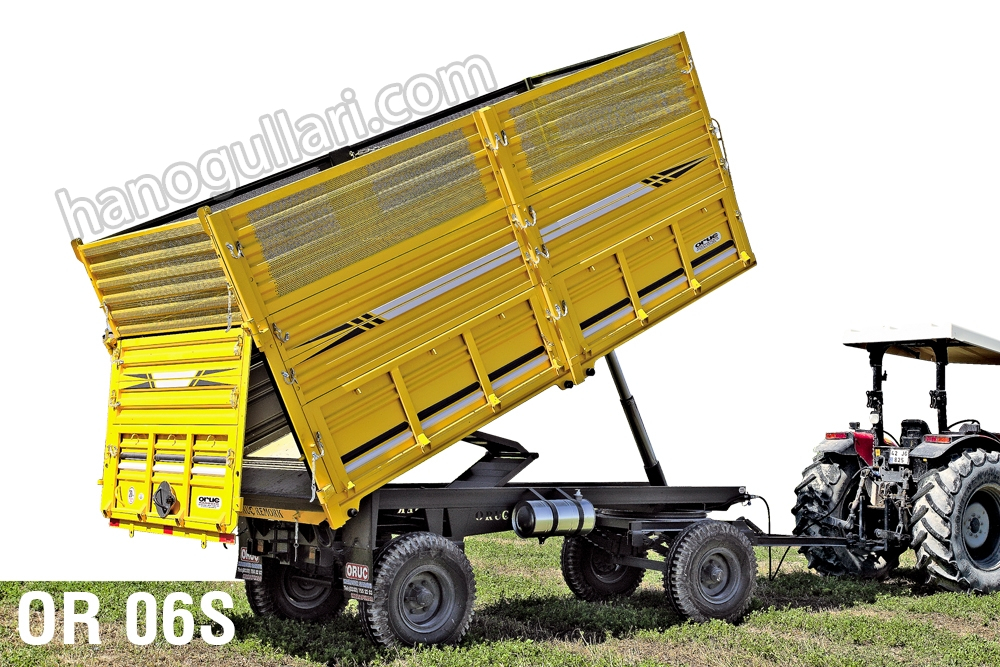

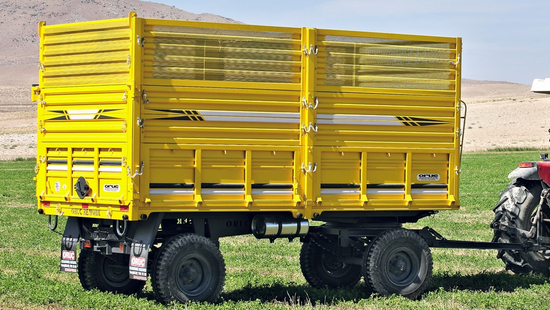

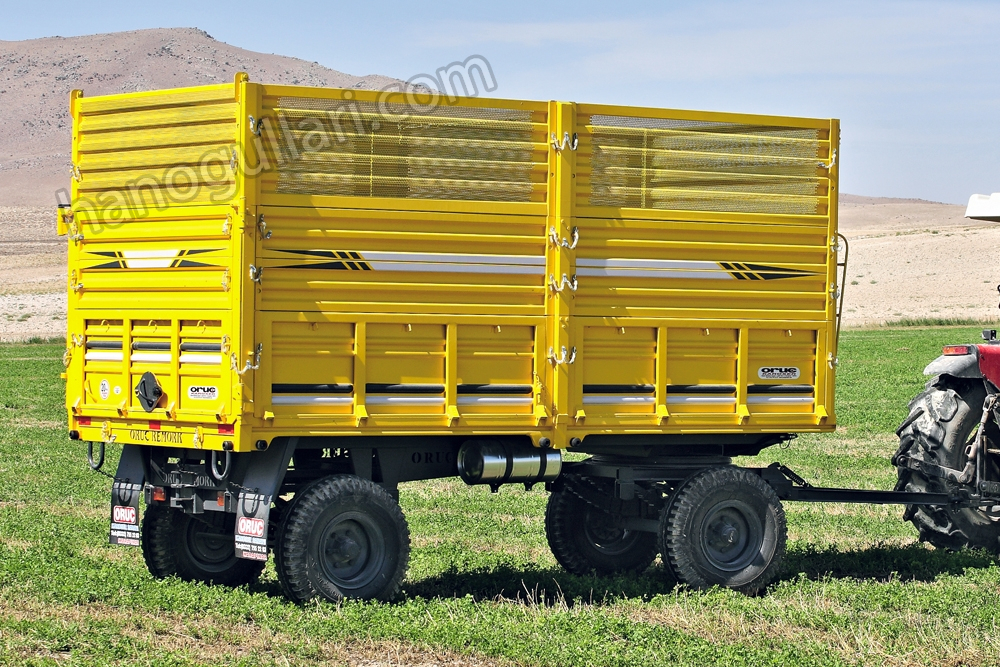

OR 06S Double Axle Silage Trailers
Our OR 06S trailer is manufactured with double axle sheet metal case and back tilt.

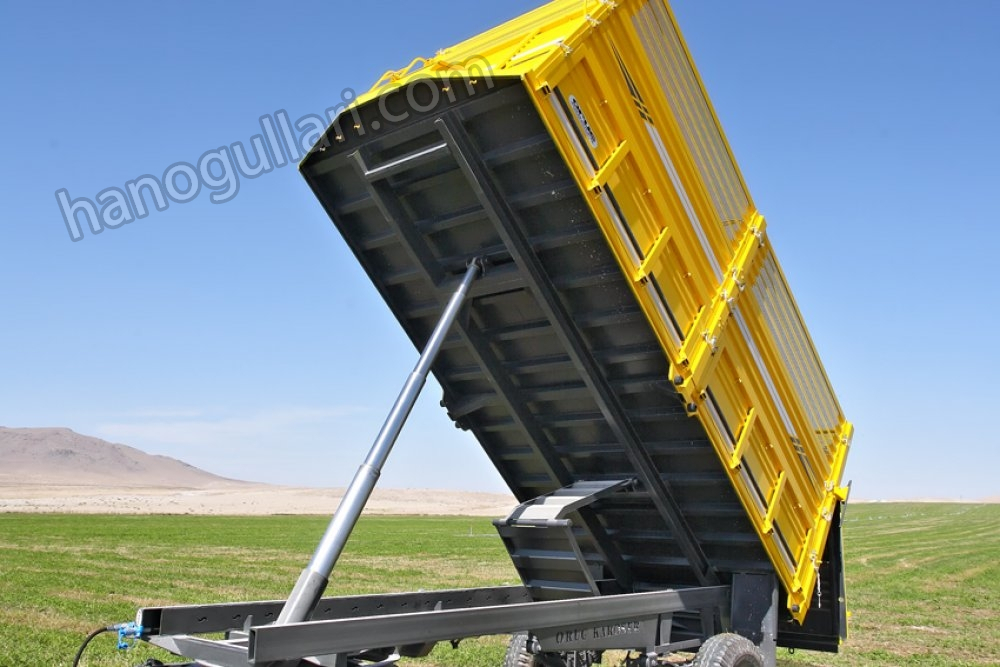

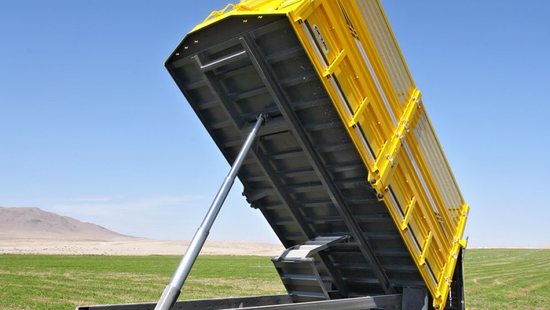

In our trailer, a lifting system is applied inside the rotating. There is no problem with the removal system.
There is a balance arm between the chassis in the rotating lift-up trailers whose length is 450 cm and longer.
The feature that distinguishes this trailer from other 06 groups is that the cover is opened to the side and it is added to the mobile from the extra sieves.
Trailer axles are closed hub system and an optional brake system is installed, it does not require lubrication for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR 06S Double Axle Silage Trailers |
| ------ | |
| Tonnage | 9000KG |
| Tare | 2610 KG |
| Cargo Space | 16M3 |
| Loading Area | ------- |
| Case Inner Length | ------- |
| Case Inner Width | ------ |
| Height/Width/Lenght | 4500mm**2200**3100mm |
| Cover Height | 600(300+300mm add)700 mm extra silage added |
| ------- | |
| Track Width | 1600 mm |
| Suspension System | Leaf Scissors |
| Tires | 900**16**14 |
| Maximum speed | 20 km |
| Dumper System | Hydraulic |
| Telescopic Cylinder | 1*4 |
| Brake Type | Hydraulic |
| Tilting Angle (Back / Sides) | 45 degree |
