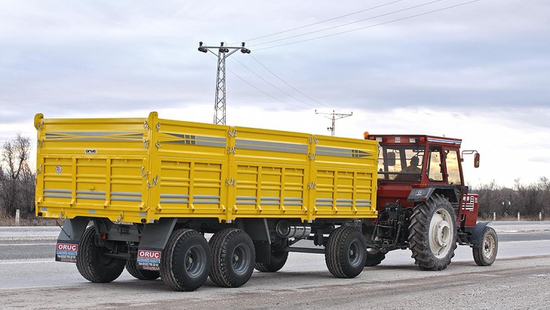

OR 21 3 Axle 6 Tire Trailer
Our OR 21 trailer has 3 axles and 6 tires and is produced as the largest trailer in its class.

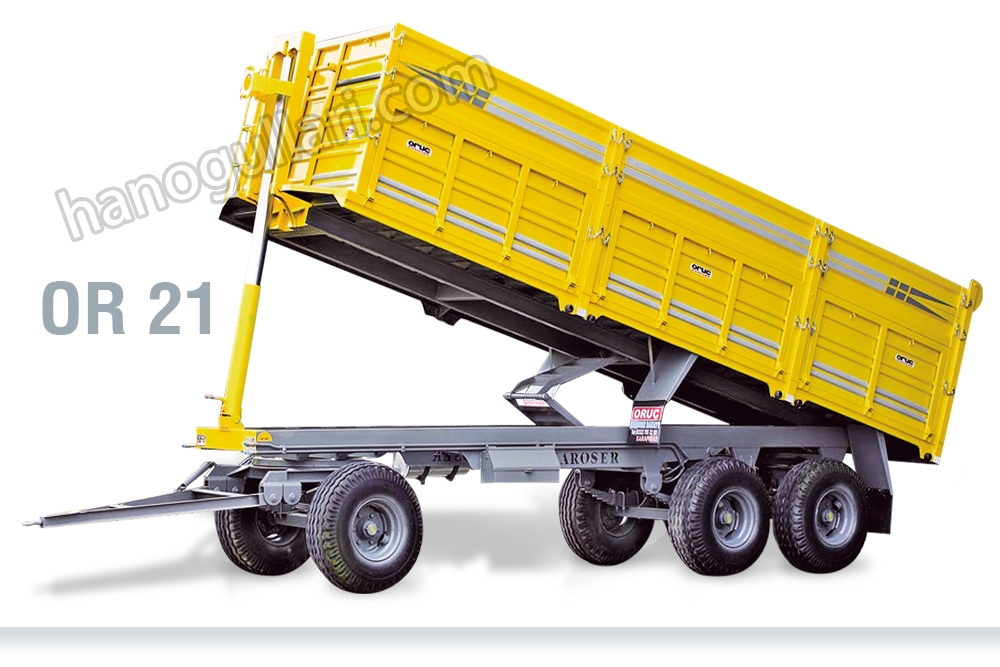

It is lifted from the axles of our trailer when it is idle with the hydraulic pressure in the middle.
There is no problem in turning and maneuvers. Trailer axles are closed hub system and do not require lubrication and maintenance for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
Our OR 21 trailer successfully got out of the advanced tonnage works and gained the appreciation of its user.
Enjoy high tonnage logistics with the OR 21. The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR 21 3 Axle 6 Wheel Trailer |
| ------------- | |
| Tonnage | 14.000 KG |
| Tare | 3650 KG |
| Cargo Space | 18M3 |
| Loading Area | -------- |
| Case Inner Length | -------- |
| Case Inner Width | ------ |
| Height/Width/Lenght | 6000mm/2200mm/2600mm |
| Cover Height | 700mm(350+350mm add) |
| ----------- | |
| Track Width | 1600mm |
| Suspension System | Leaf Scissors |
| Tires | 400*60*15,5 |
| Maximum speed | 20 km |
| Dumper System | Hydraulic |
| Telescopic Cylinder | 1/5 |
| Brake Type | Hydraulic |
| Tilting Angle (Back / Sides) | 45 degree |
