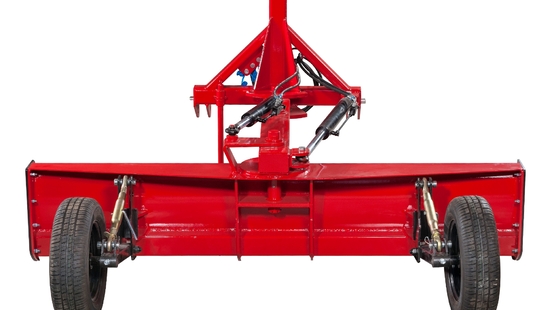

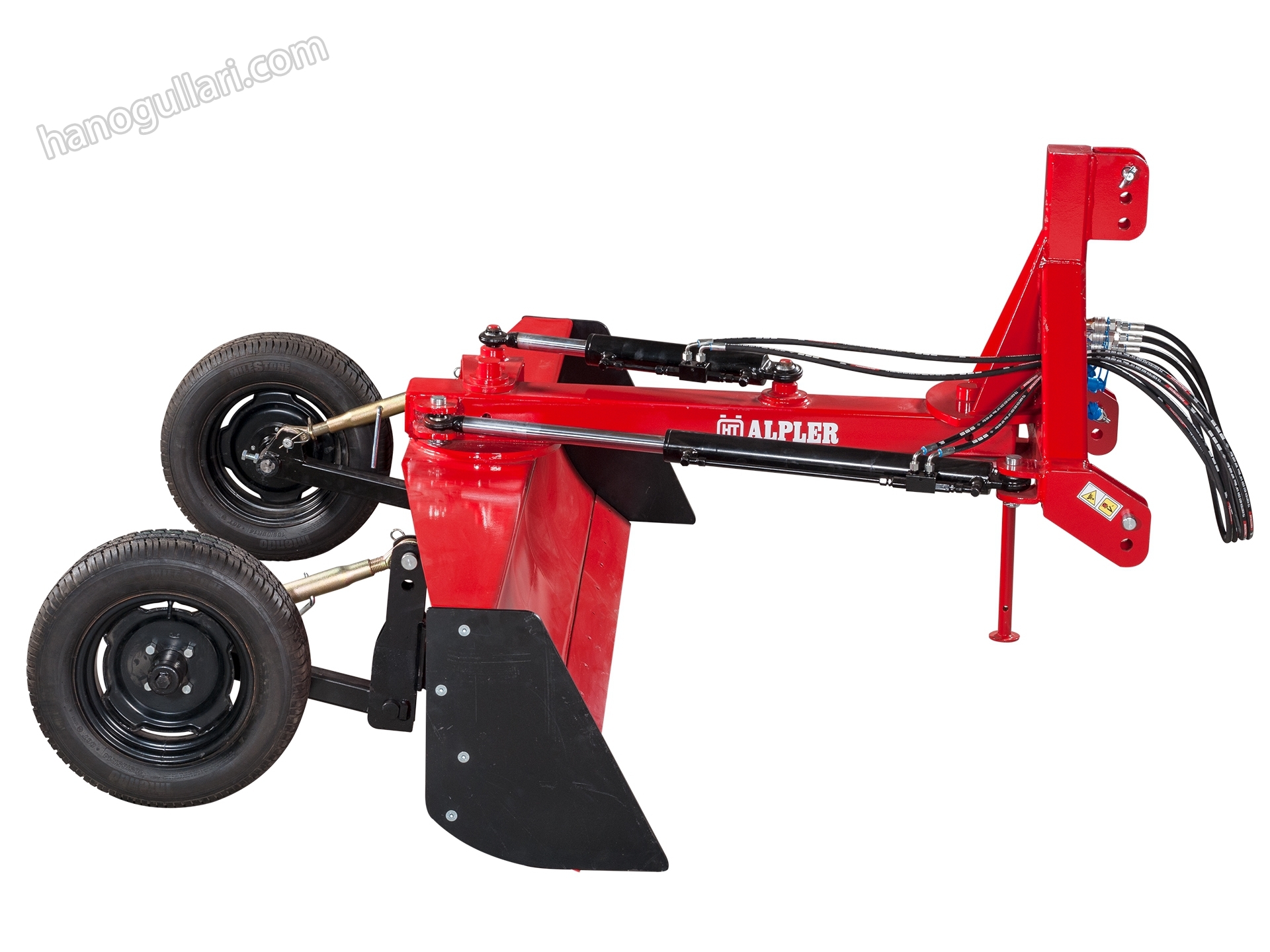

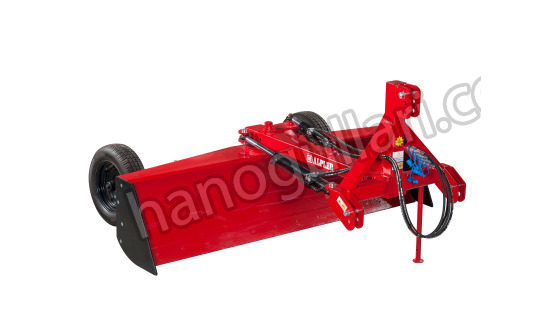

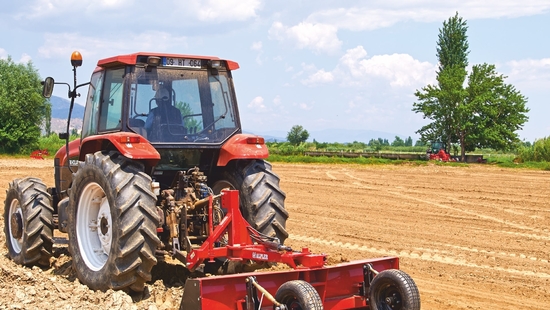

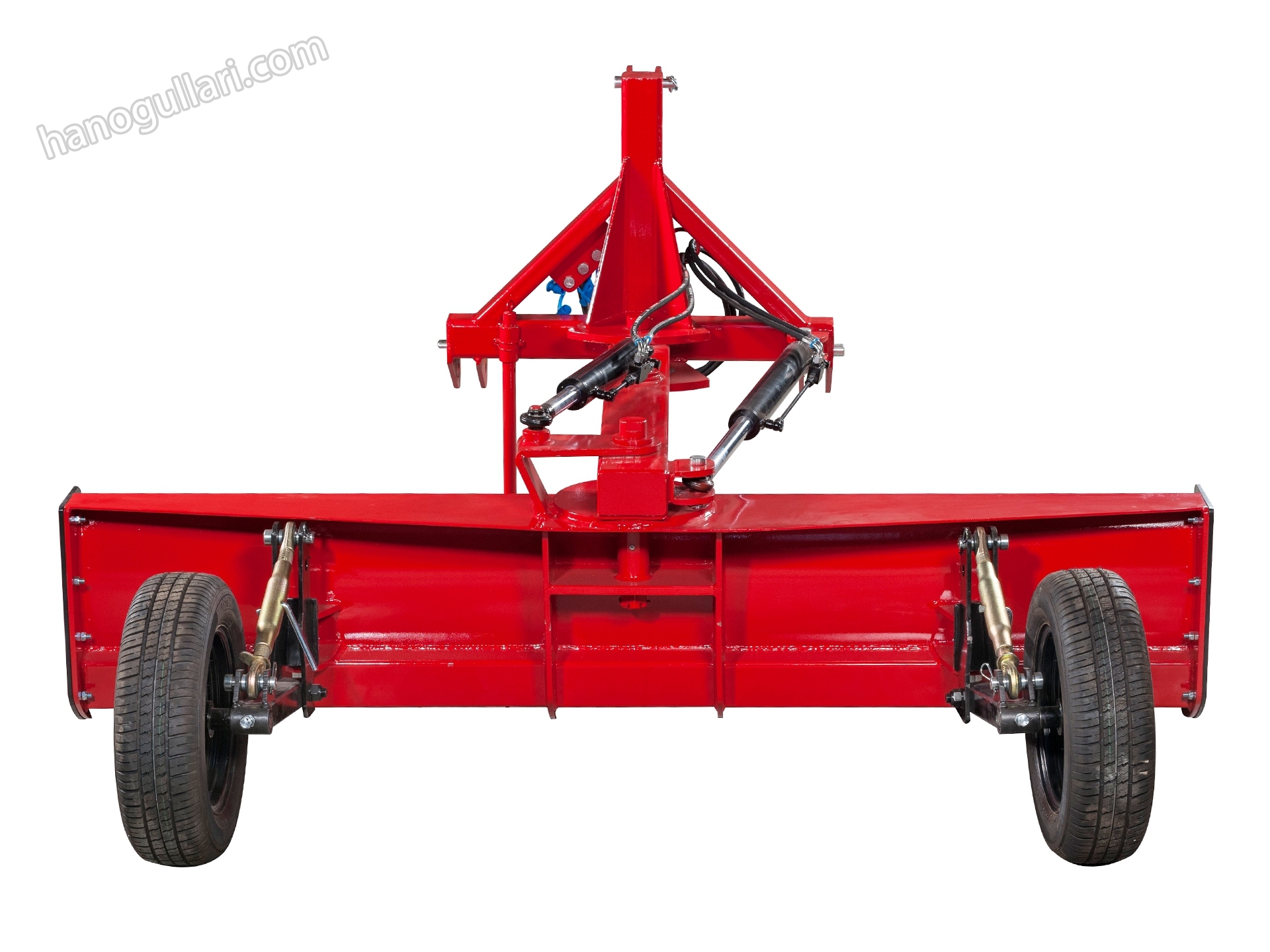

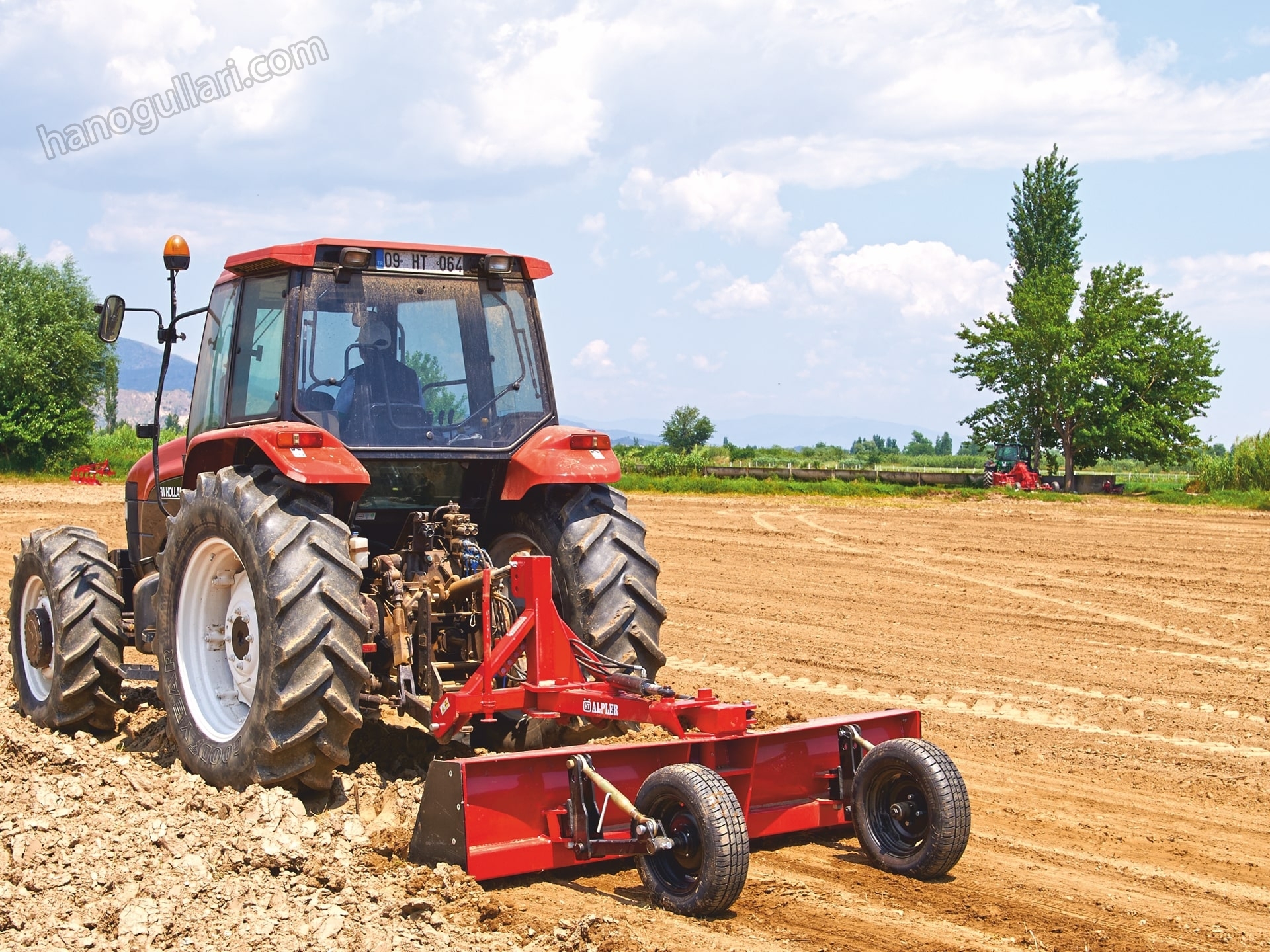

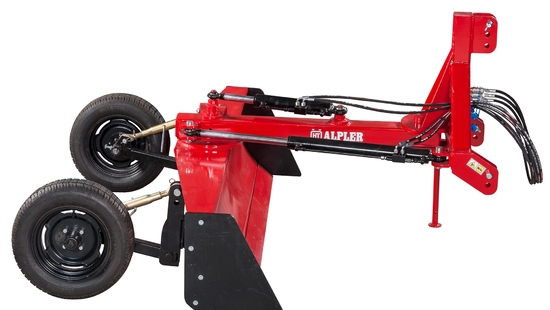

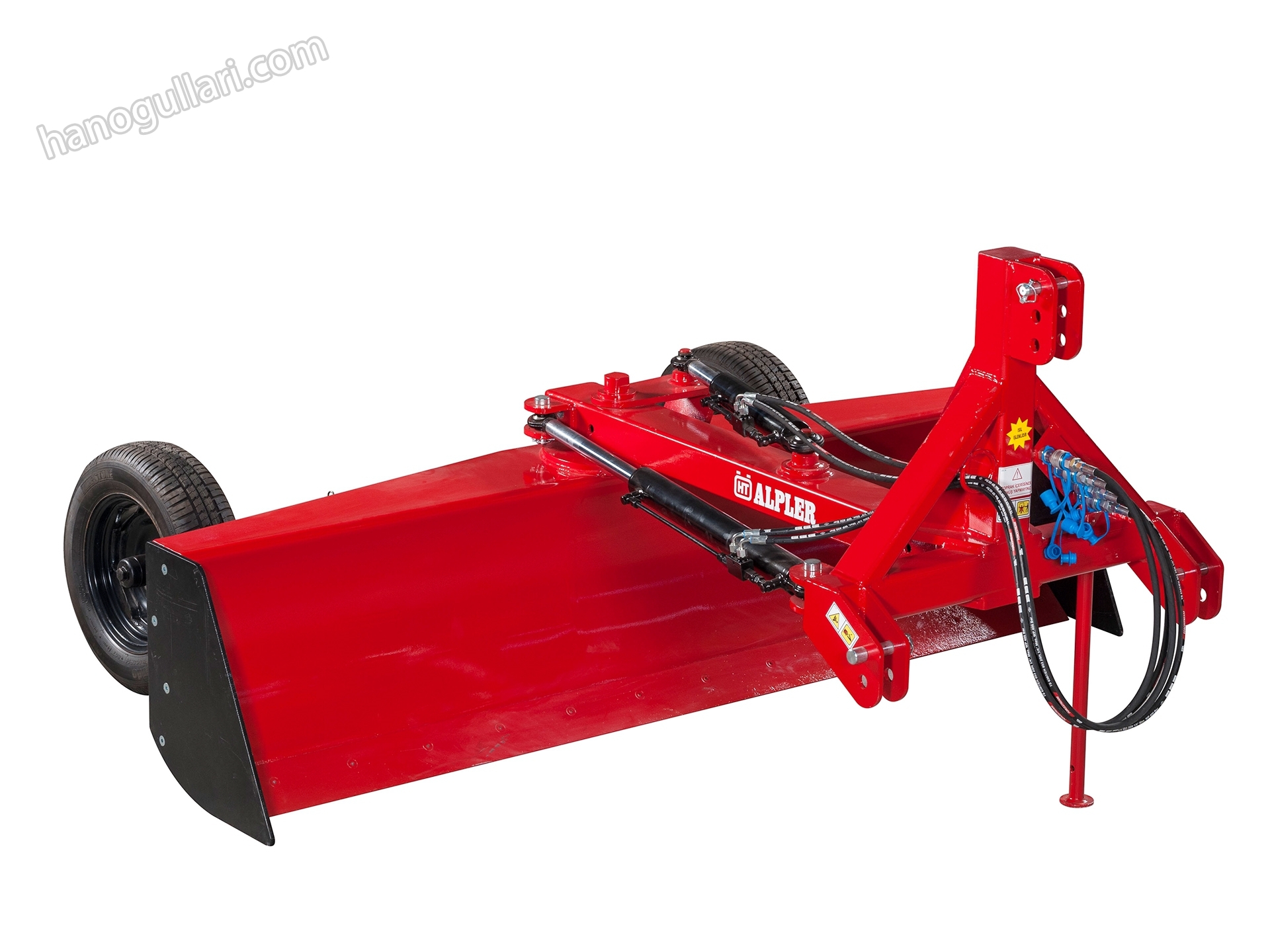

Rear Blade

Easily adjustable grip, position and body angle settings.
In all models, reinforced chassis, curved without corners, non-stick, long-lasting paddle surface.
Heat treated double sided replaceable blades.
Precise working at fixed height with optional wheel system.
Easily adjustable angle adjustment in manual systems.
Standard support leg for easy assembly and safety.

MODEL	WORKING WIDTH (CM)	BLADE HEIGHT (CM)	BLADE ROTATION	OFFSET ADJUSTMENT	WEIGTH (KG)	POWER REQUIREMENT (HP)
TK200	200	60	Manuel	-	400	40-60
TK250	250	60	Manuel	-	435	50-70
TK300	300	60	Manuel	-	460	60-80
TKT200	200	60	Manuel	-	480	40-60
TKT250	250	60	Manuel	-	515	50-70
TKT300	300	60	Manuel	-	540	60-80
TKH200	200	60	Hydraulic	Hydraulic	445	40-60
TKH250	250	60	Hydraulic	Hydraulic	408	50-70
TKH300	300	60	Hydraulic	Hydraulic	505	60-80
TKHT200	200	60	Hydraulic	Hydraulic	525	40-60
TKHT250	250	60	Hydraulic	Hydraulic	560	50-70
TKHT300	300	60	Hydraulic	Hydraulic	585	60-80
It is possible to change the above technical details in line with customer needs. There may be changes in product technical details and standard accessories, product images are for promotion. The indicated required horsepower may differ up to ± 20% depending on the soil structure and technical characteristics of the tractors (double tractors etc.). Stated weights can differ up to ± 15% depending on optional parts.
