Sequential Output Milking Systems

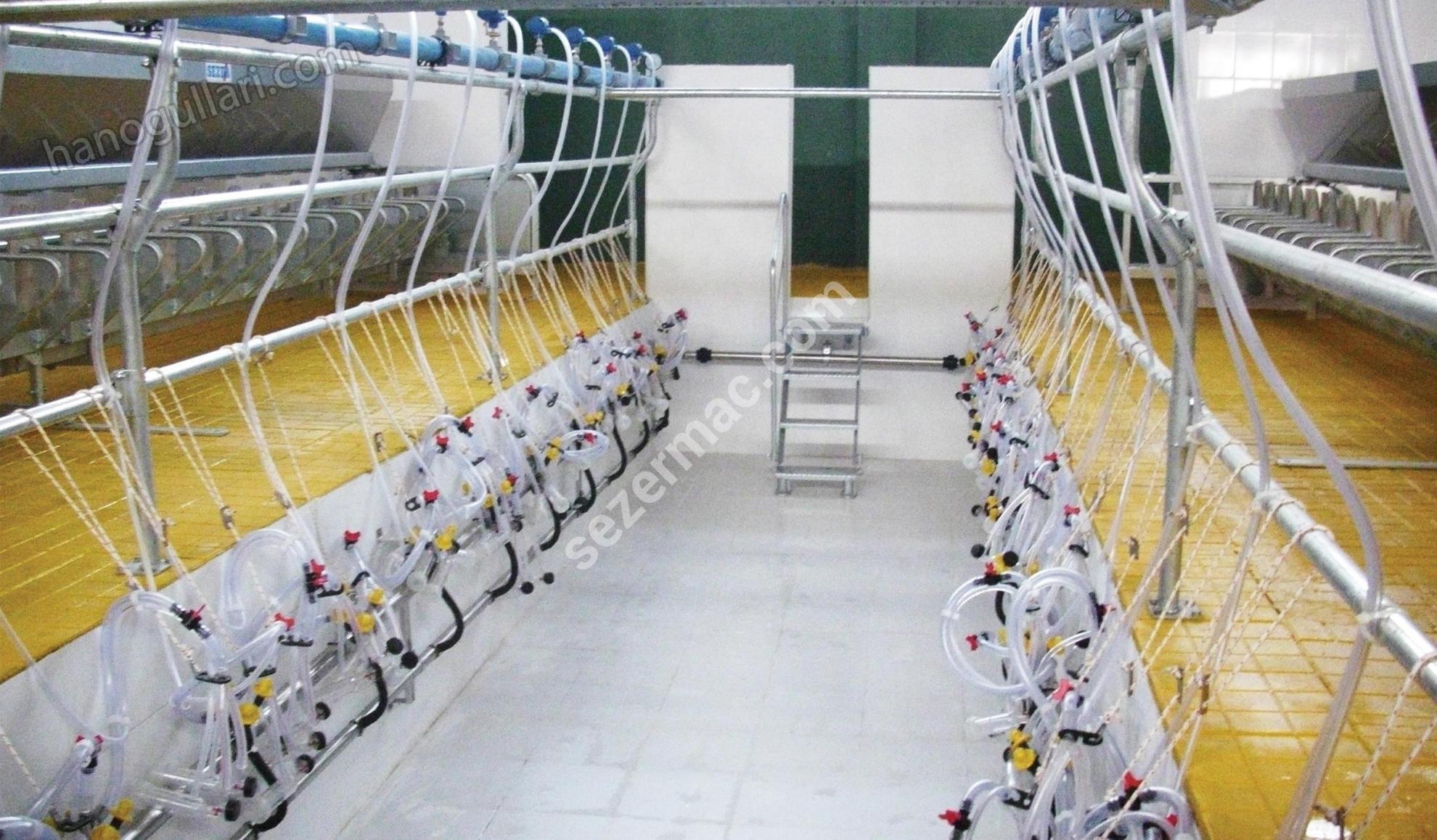

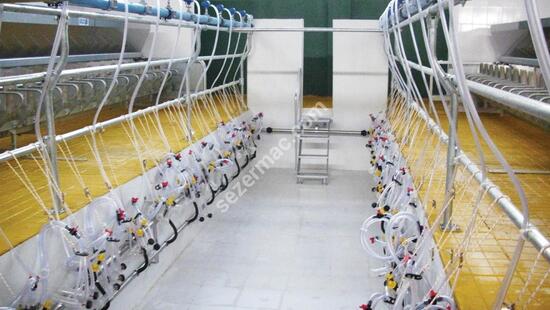

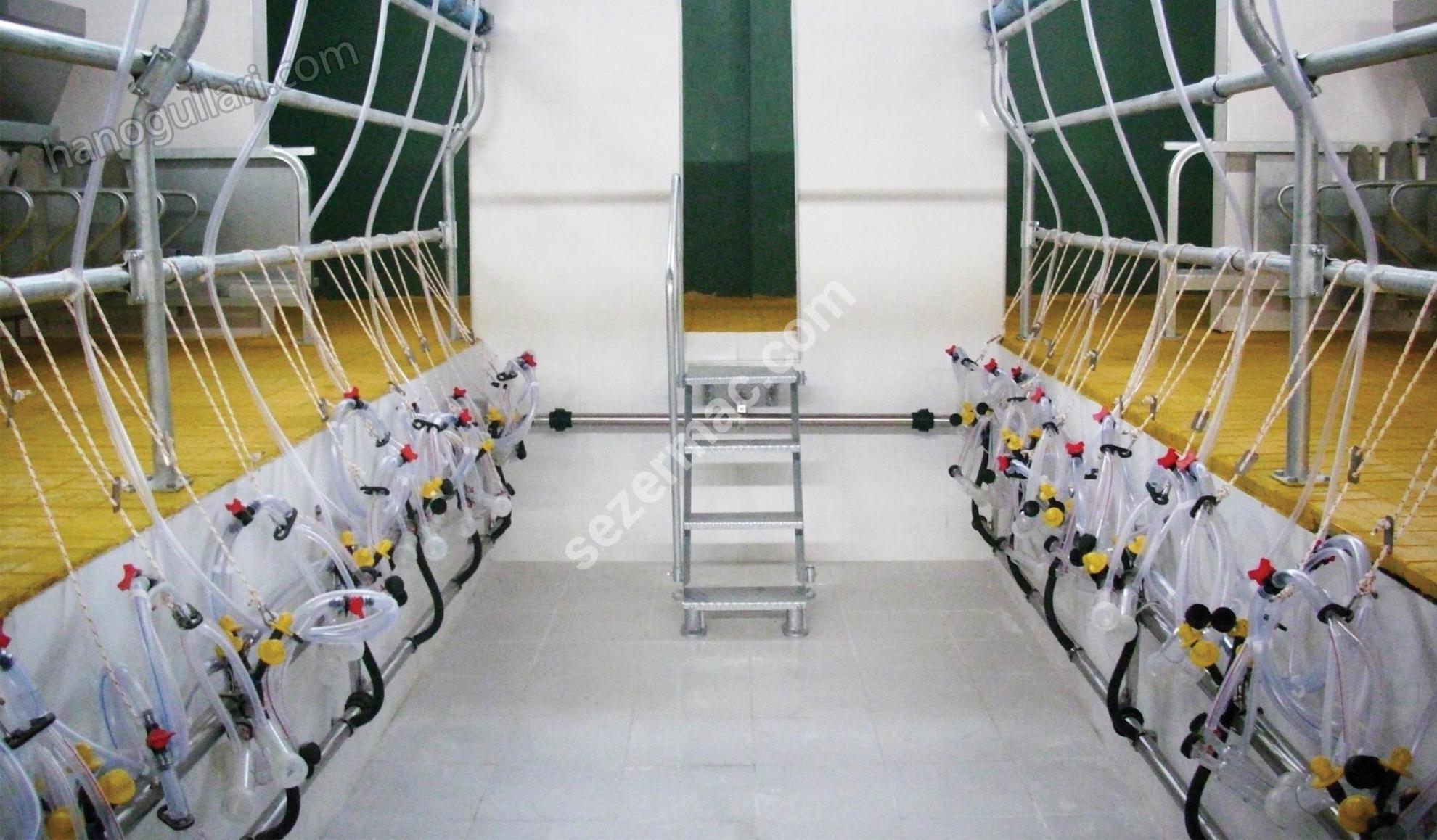

Sezer ovine-row outlet milking parlors are stall milking systems where goats and sheep are locked from the neck area while reaching for the feed, remain locked during the milking process and exit sequentially at the end of milking.
Sequential exit paddock milking systems; It is produced in groups of 6, 12, 18, 20, 24, 36 and 48.

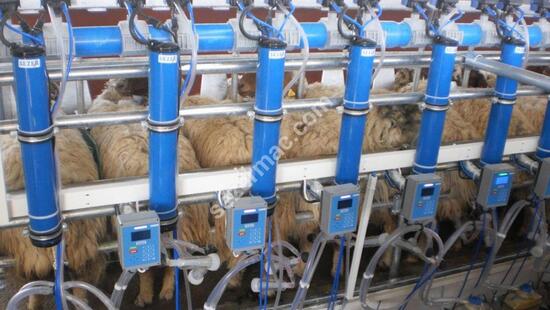

◊ As with all our milking systems, it is possible to modernize your system in time, starting from the standard model in our ovine milking systems with sequential exit paddock. For example, you can convert your standard type milking system with mechanical pulsator to a milking system with electronic pulsator, mechanical or electronic milk meter, automatic cluster extractor or herd management according to your needs in the future.
Paddock intervals, 35.5 cm per animal. It is produced as. We also have special width productions.

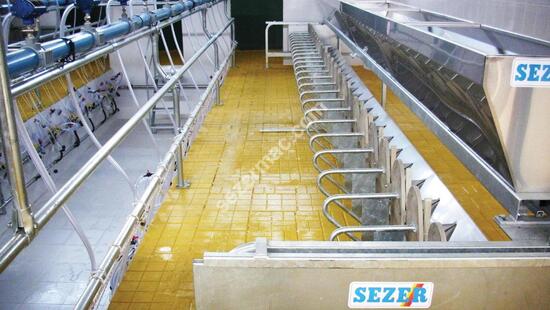

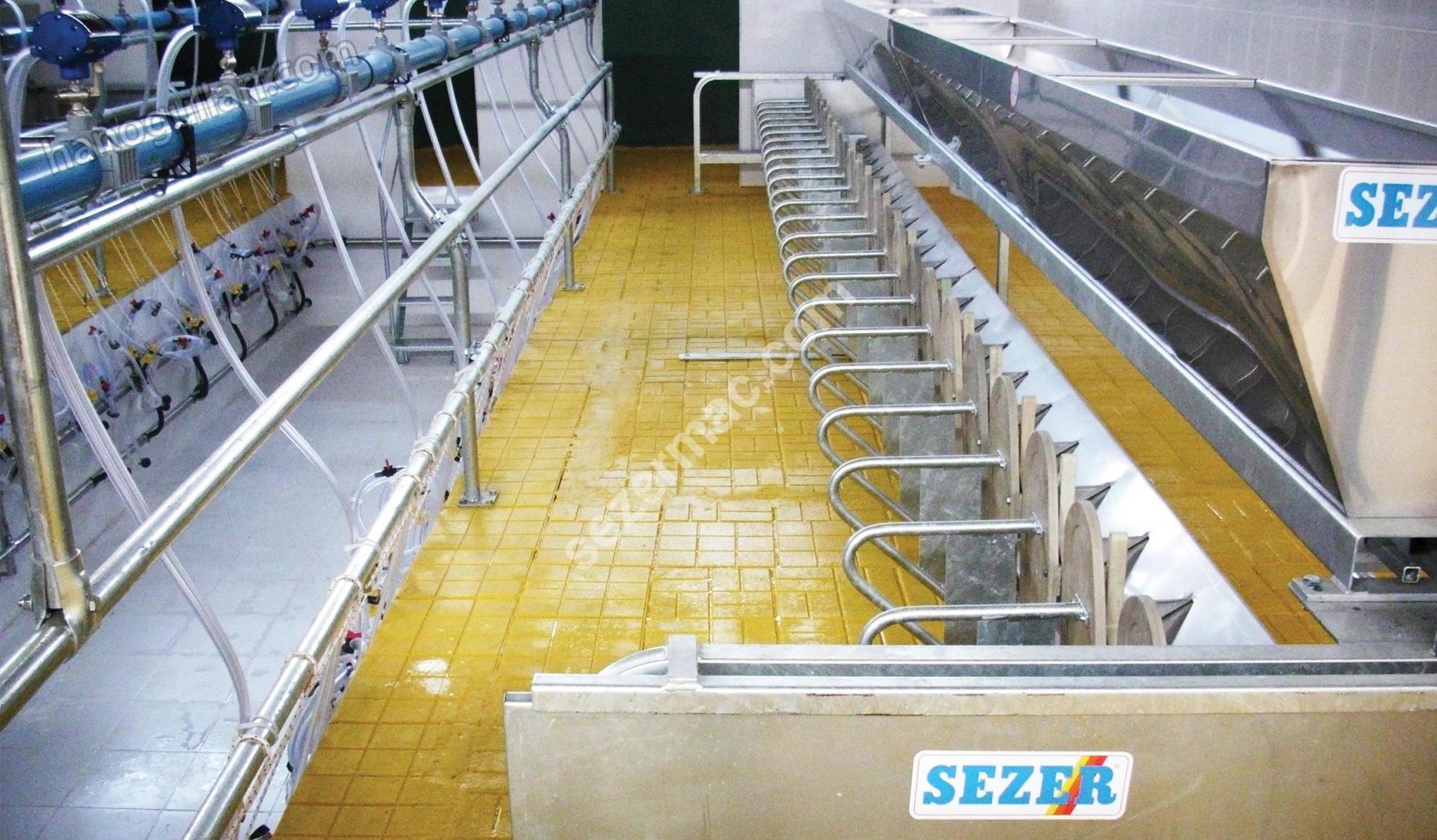

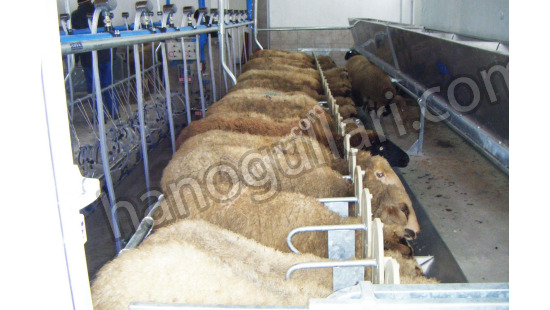

◊ In this milking system, the milking stalls are positioned at an angle of 90 degrees for the best milking position and easy access to the udder.

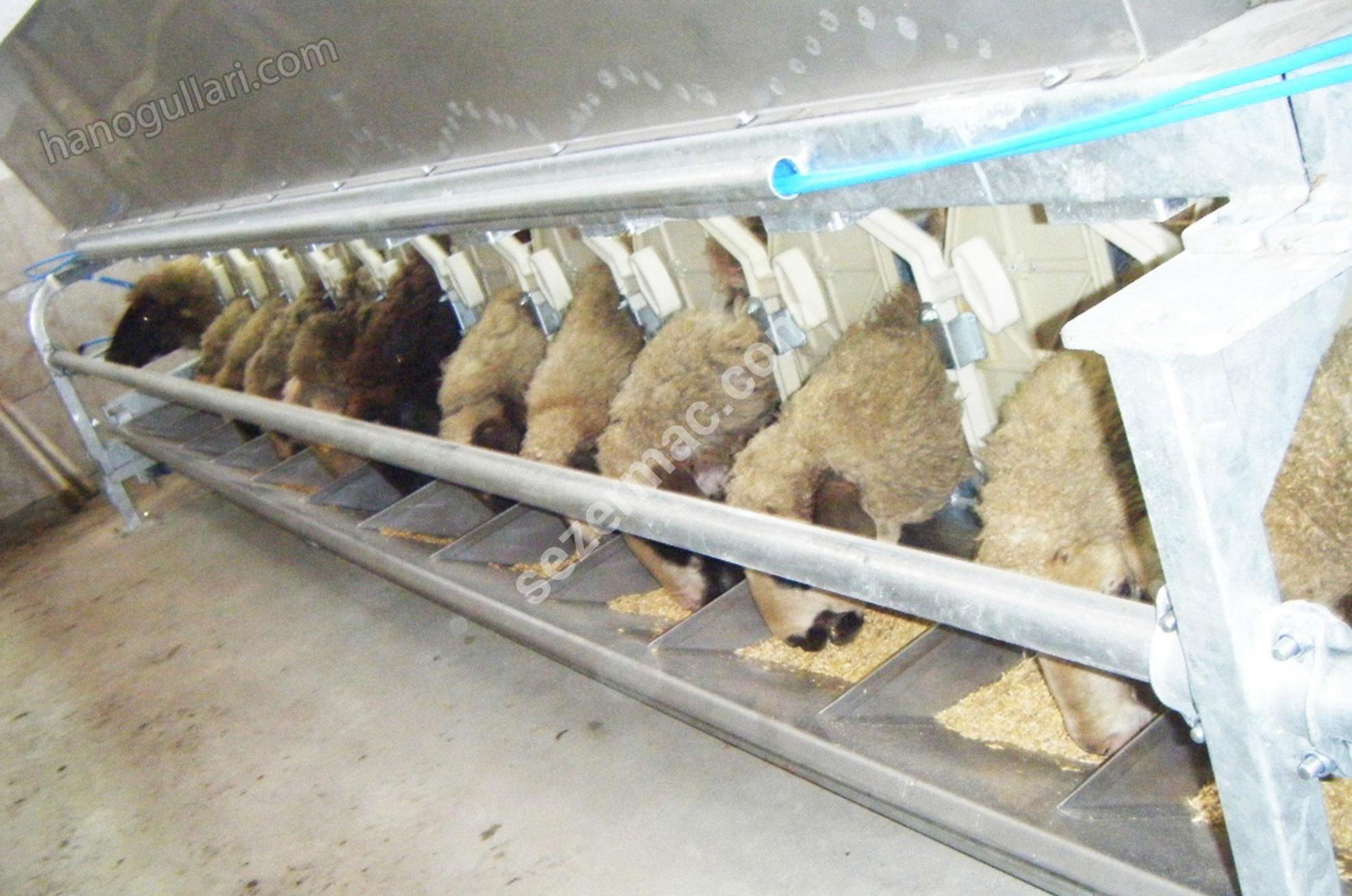

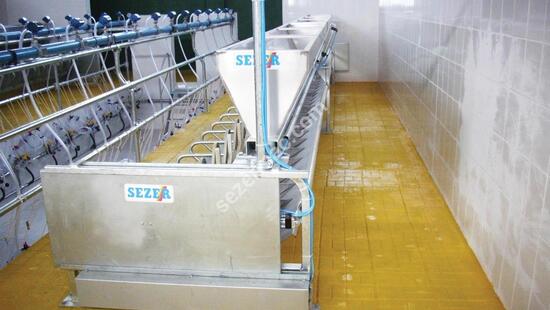

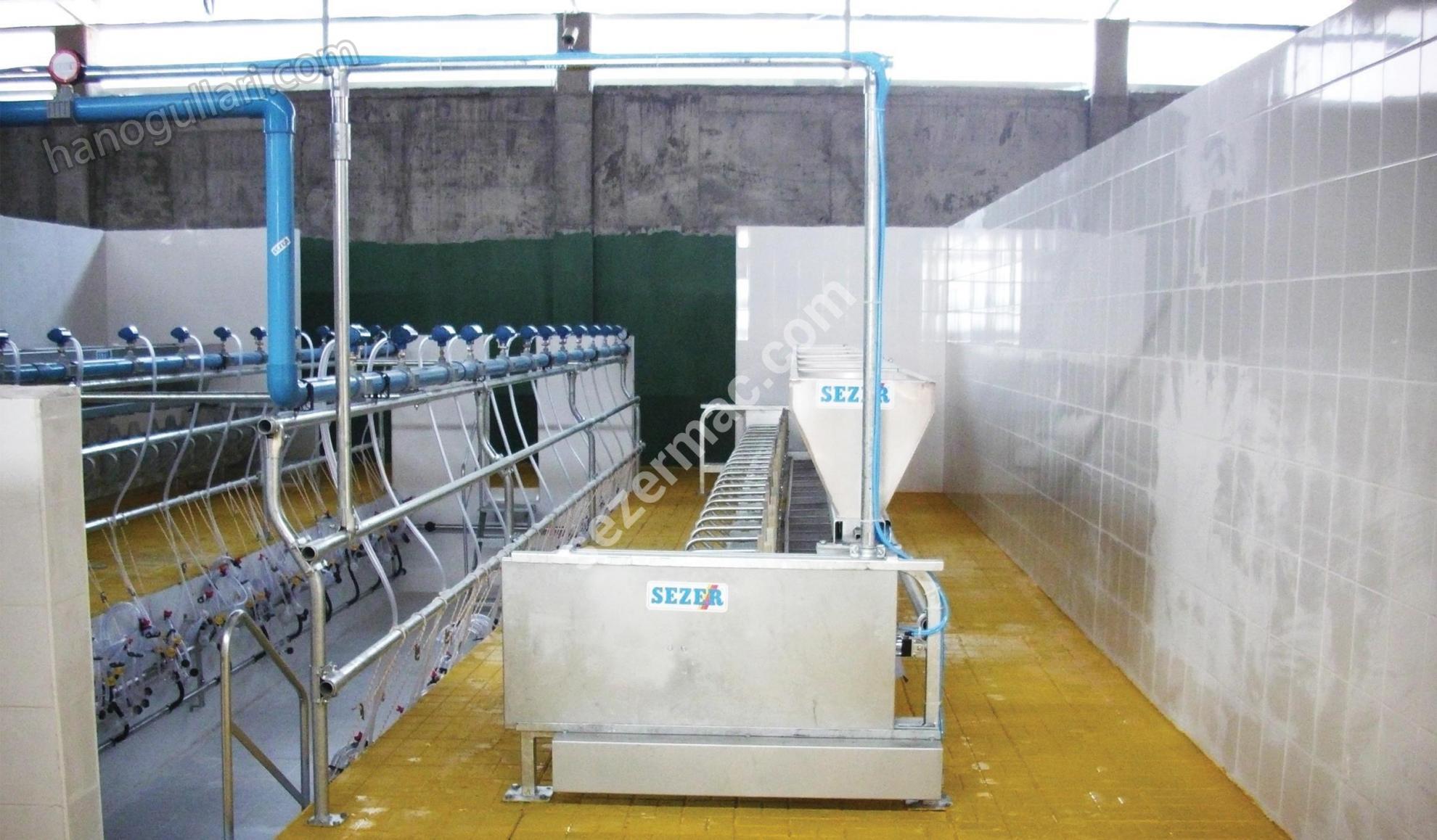

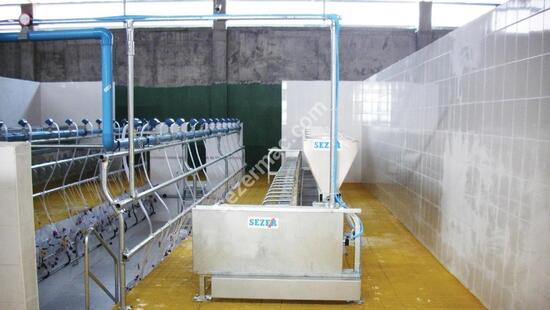

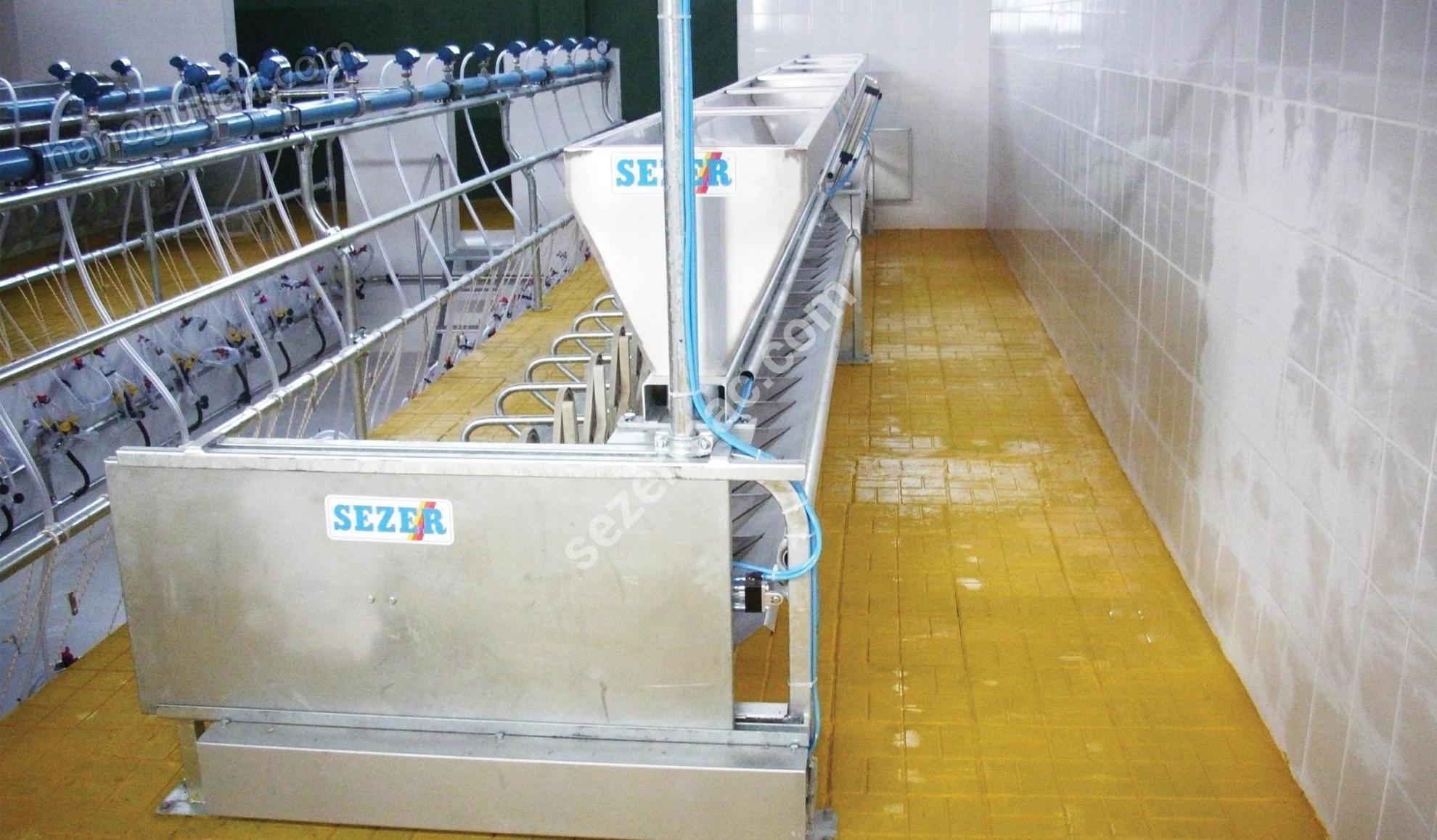

◊ Paddock has a feeding system made of stainless steel that can be controlled from the milking pit. In this system, before the ovine animals enter the paddock; With the help of a button that can be controlled from the milking pit, rewarding pellet feed in the form of 100 g and its multiples is poured into the feed bowls, allowing the animals to enter the milking pad easily and automatically.

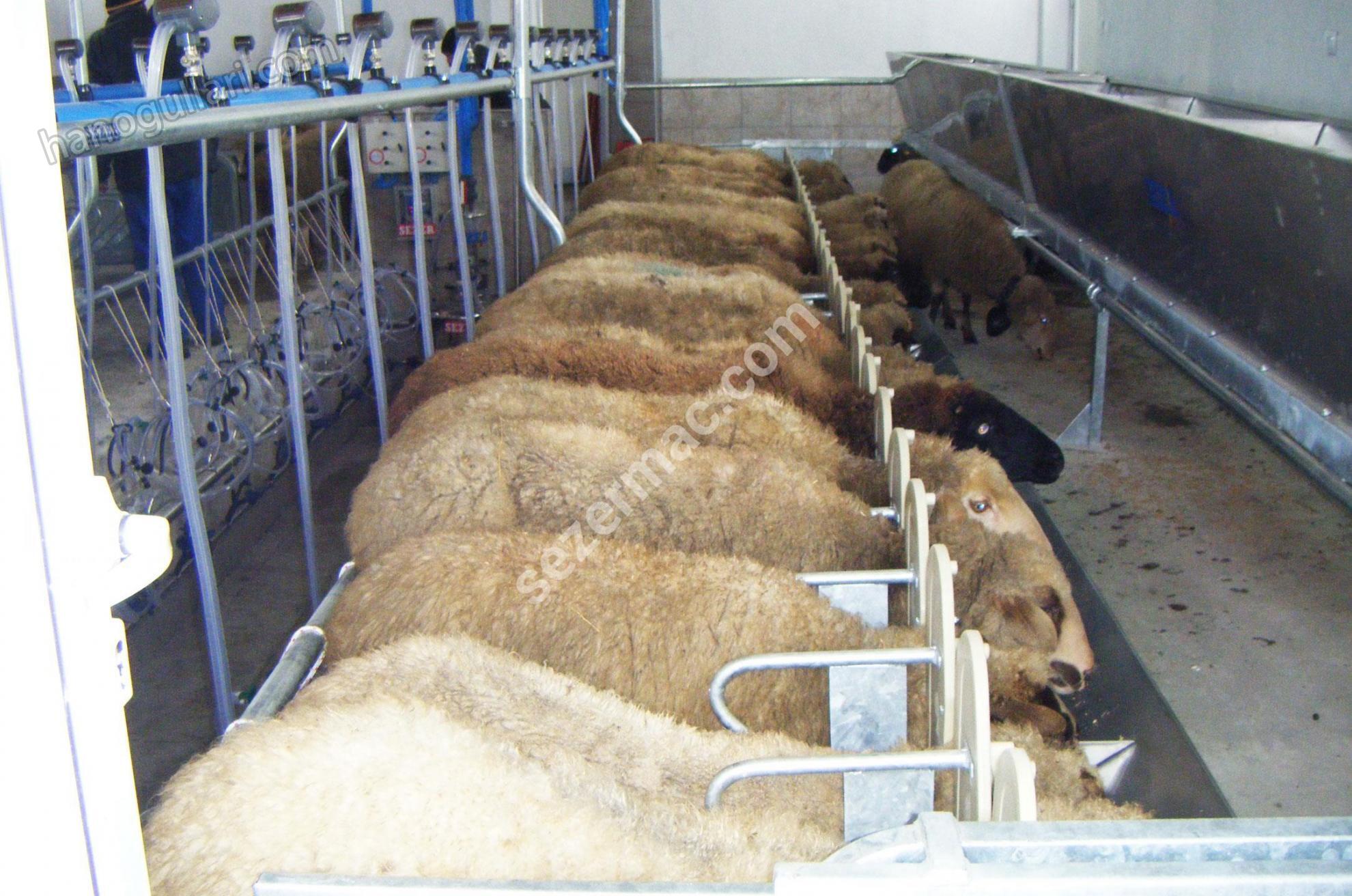

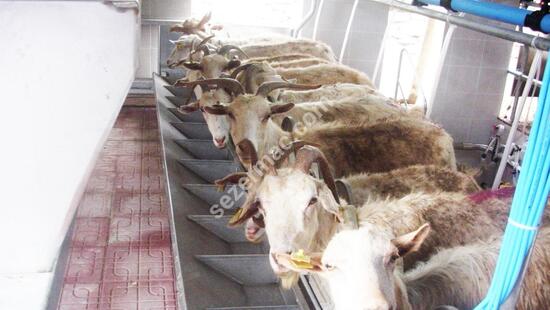

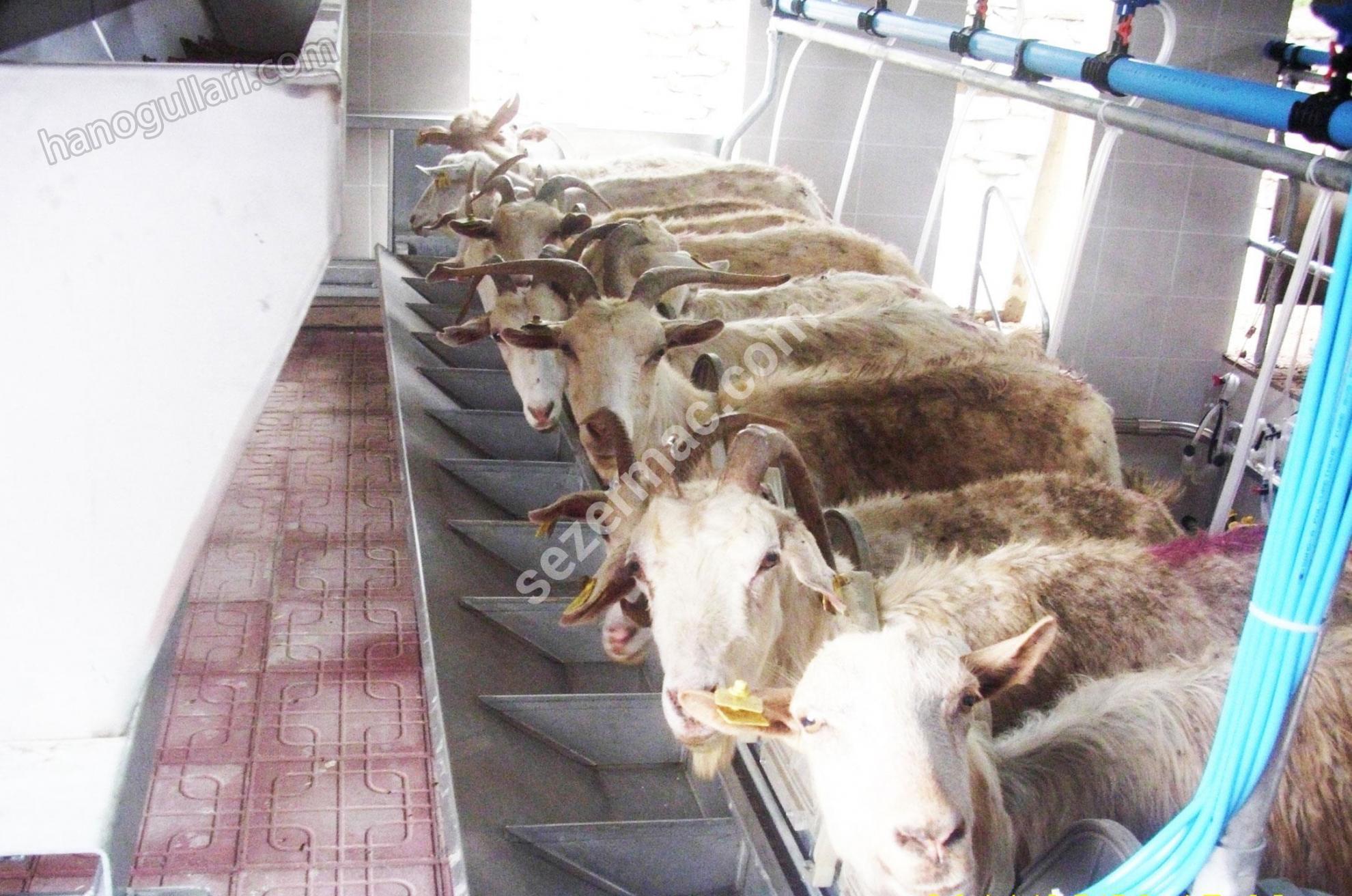

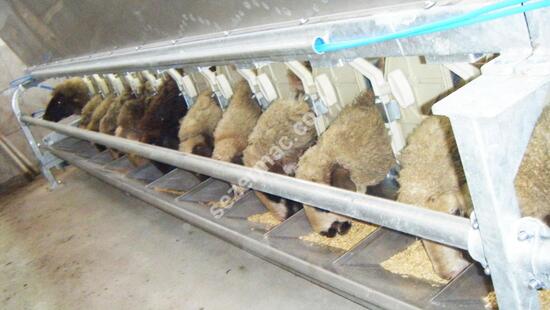

◊ Animals entering the paddock are locked in their neck areas while reaching for food. After all animals take their place, the feeder system and animals are brought back towards the milking pit with a button that can be controlled from the milking pit by the milker.
◊ After milking, by pressing the button again, the neck locks open automatically as the milker moves the animals and the feeding system forward from the milking pit, and the animals that are freed leave the pad quickly.

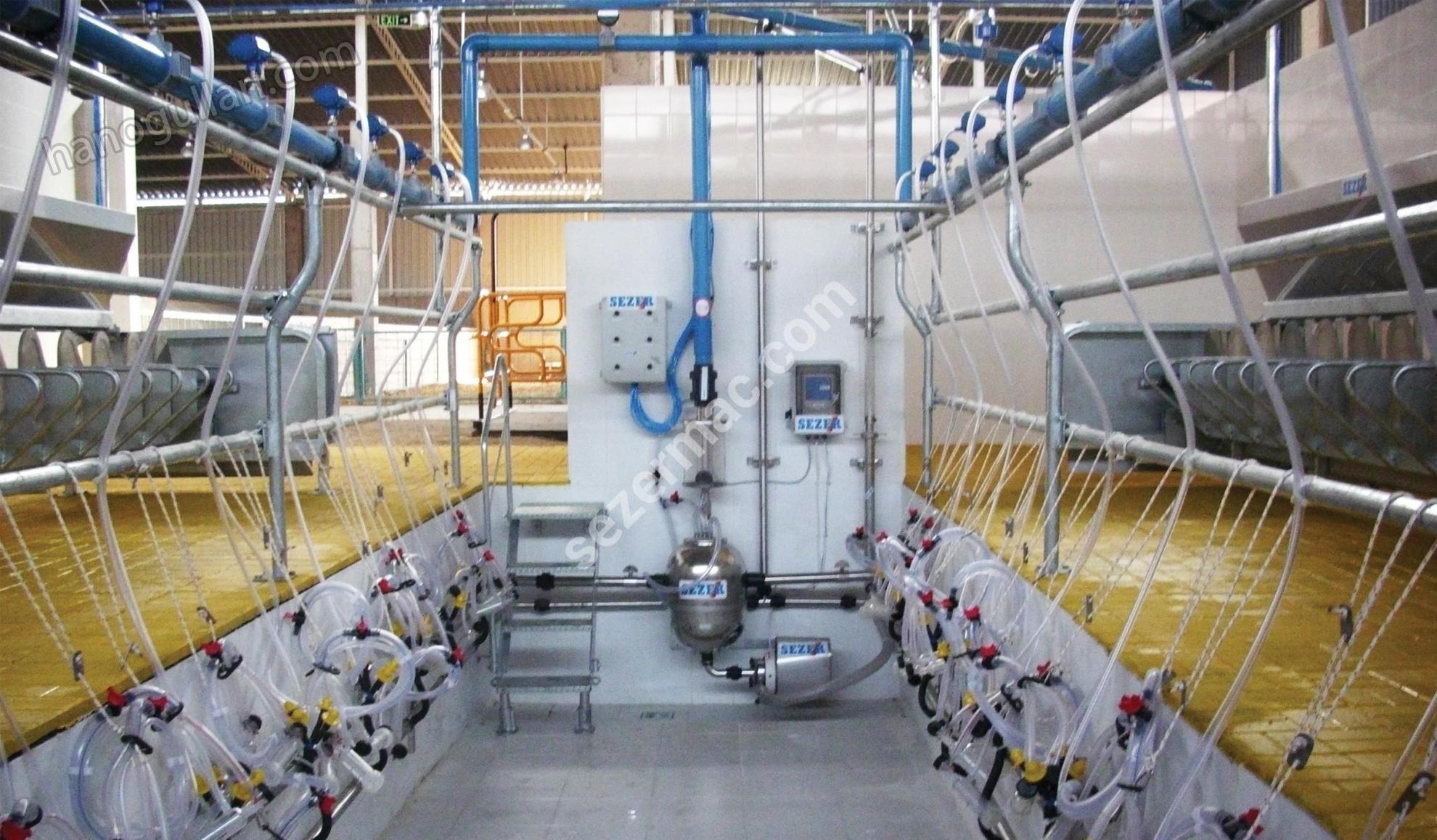

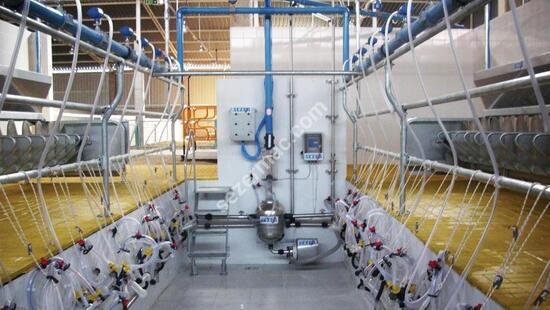

◊ Opening and closing of the milking parlor entrance door, the feeding system and the back and forth movement of the feeder group towards the milking pit; It is controlled by a button from the milking pit. The movement of the door and the feeder group is provided by the pneumatic (air) system. The compressor supporting the system is supplied with the paddock.
Specifications :
Paddock collars and locking arms are made of reinforced polyamide material.
◊ Our paddocks lower and upper feeder chambers are made of AISI 304 stainless steel sheet.
◊ Parts such as other side carrier chassis, top and bottom feeding chassis are coated with hot dip galvanize for protection against corrosion.
◊ Our padded type aluminum pneumatic pistons that we use in motion mechanisms are installed in such a way that they can be made in control switches as well as speed settings.
◊ Entry - exit doors are pneumatically controlled and their directions can be changed according to the milking parlor.
