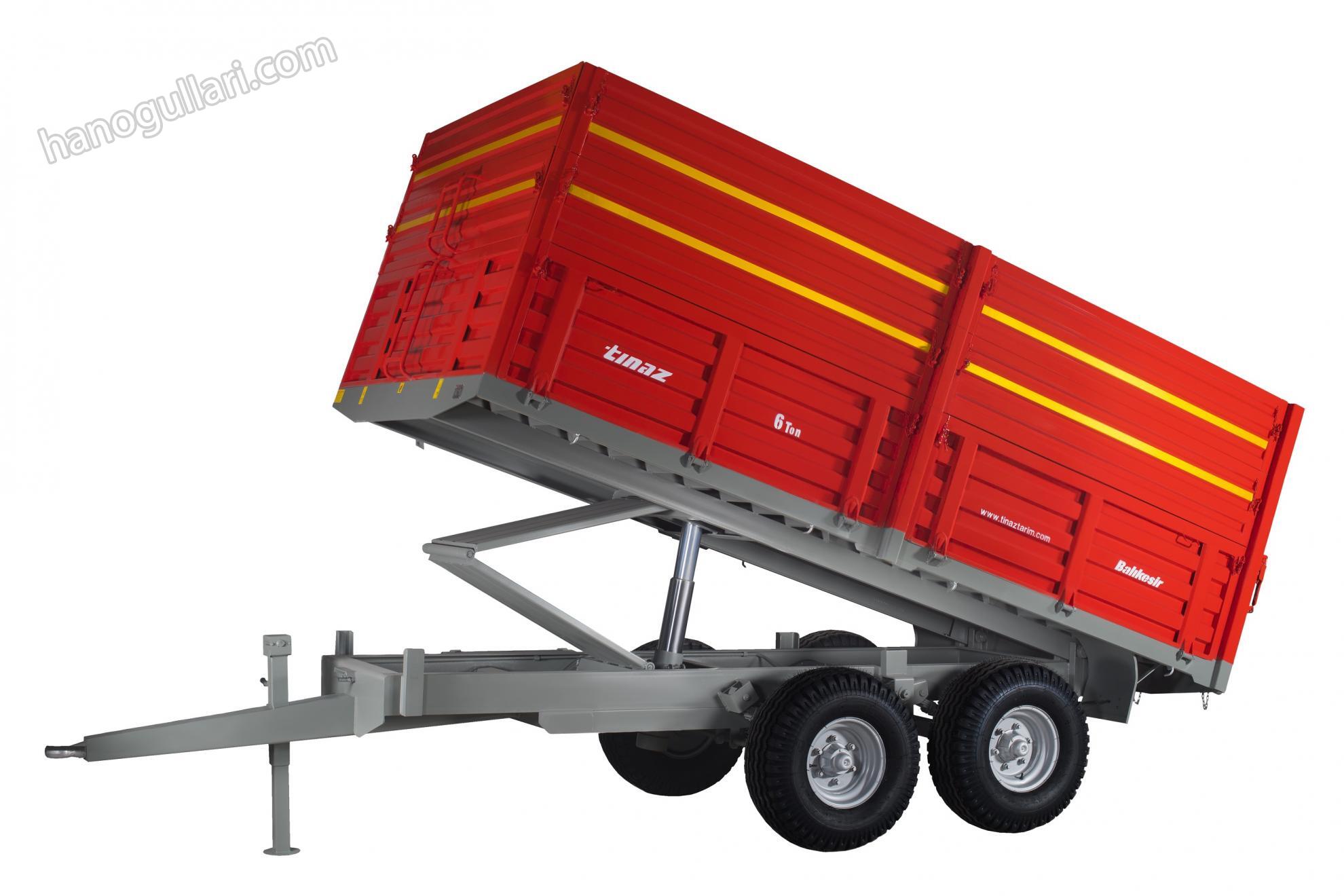

Tandem Axle

Kategori:

Marka:

Paylaş:

6 TON

PRODUCT CODE

TDM 6 TON

Capacity

6

ton

Length

4300

mm

Width

2100

mm

Side Wall / Extension

600 / 300+300

mm

Tire

12,5 / 80 - 15,3

Brake

Hydraulic Brake

Floor/Wall Thickness

2,5 / 2

mm

Loading Volume

10,83

m³

Loading Area

24,39

m²

Empty Weight

2400

kg

Suspension

Leaf Spring

Tipping System

Rear

Tipping Angle

50

°

8 TON

PRODUCT CODE

TDM 8 TON

Capacity

8

ton

Length

4500

mm

Width

2100

mm

Side Wall / Extension

700 / 300+300

mm

Tire

12,25 / 80 - 15,3

Brake

Hydraulic Brake

Floor/Wall Thickness

2,5 / 2

mm

Loading Volume

12,28

m³

Loading Area

26,61

m²

Empty Weight

2800

kg

Suspension

Leaf Spring

Tipping System

Rear

10 TON

PRODUCT CODE

TDM 10 TON

Capacity

10

ton

Length

4800

mm

Width

2100

mm

Side Wall / Extension

700 / 300+300

mm

Tire

12,5 / 80 - 15,3

Brake

Hydraulic Brake

Floor/Wall Thickness

2,5 / 2

mm

Loading Volume

13,1

m³

Loading Area

28,02

m²

Empty Weight

3100

kg

Suspension

Leaf Spring

Tipping System

Rear
