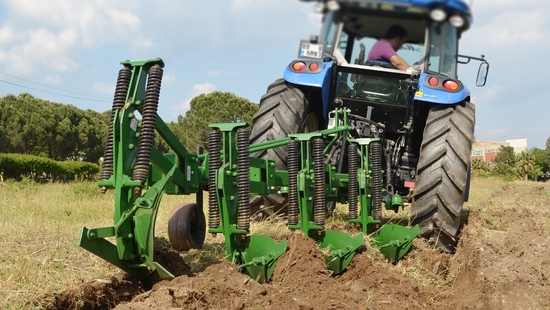

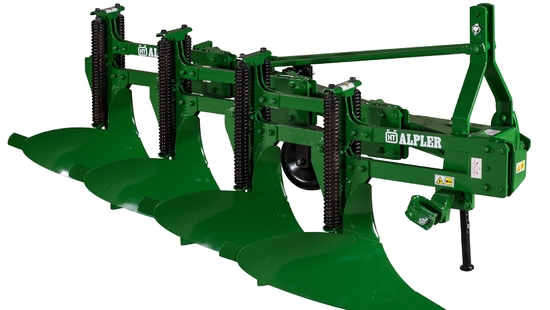

Automatic Plough with Vertical Spring
- Non-stop trouble free plowing opportunity for stony, rooted and first time plowed lands. The two helical springs lets the swing out bodies re-enter the soil immediately.
- The spring pressures can be easily adjusted for each body to different soil conditions in order to obtain optimum release characteristics.
- Flanged frame to add an extension,if required.
- Mechanical or Hydroulic working width adjustment (Optional).
- Trash boards.
- Shares with Reversible Points. Mouldboard Extension (Std). Deflector (Std).
- Slatted Body. Wing Coulter.
- Metal Depth Wheel
- Bar Point Body.
- F, X and V Type Mouldboard
| MODEL | CLEARANCE(CM) | DISTANCE BETWEEN BEAMS(CM) | WORKING WIDTH (CM) | WORKING DEPTH (CM) | WEIGTH (KG) | POWER REQUIREMENT (HP) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 | |||||
| OP10 | 70 | 75 | 25,5 | 24 | 390 | 560 | 745 | 915 | 30-40 | 45-50 | 70-80 | 80-90 |
| OP11 | 70 | 75 | 27,5 | 24 | 400 | 575 | 750 | 917 | 30-40 | 50-55 | 70-85 | 85-95 |
| OP12 | 70 | 75 | 30 | 26 | 410 | 590 | 760 | 925 | 40-50 | 55-60 | 70-85 | 90-100 |
| OP13 | 70 | 75 | 32,5 | 28 | 414 | 592 | 763 | 935 | 40-50 | 55-60 | 70-85 | 90-100 |
| OP14 | 70 | 75 | 35 | 28 | 417 | 595 | 765 | 941 | 40-50 | 60-70 | 80-90 | 90-110 |
| OP16 | 70 | 75 | 40 | 30 | 430 | 610 | 770 | 950 | 50-60 | 70-80 | 80-90 | 100-110 |
| ||||||||||||
