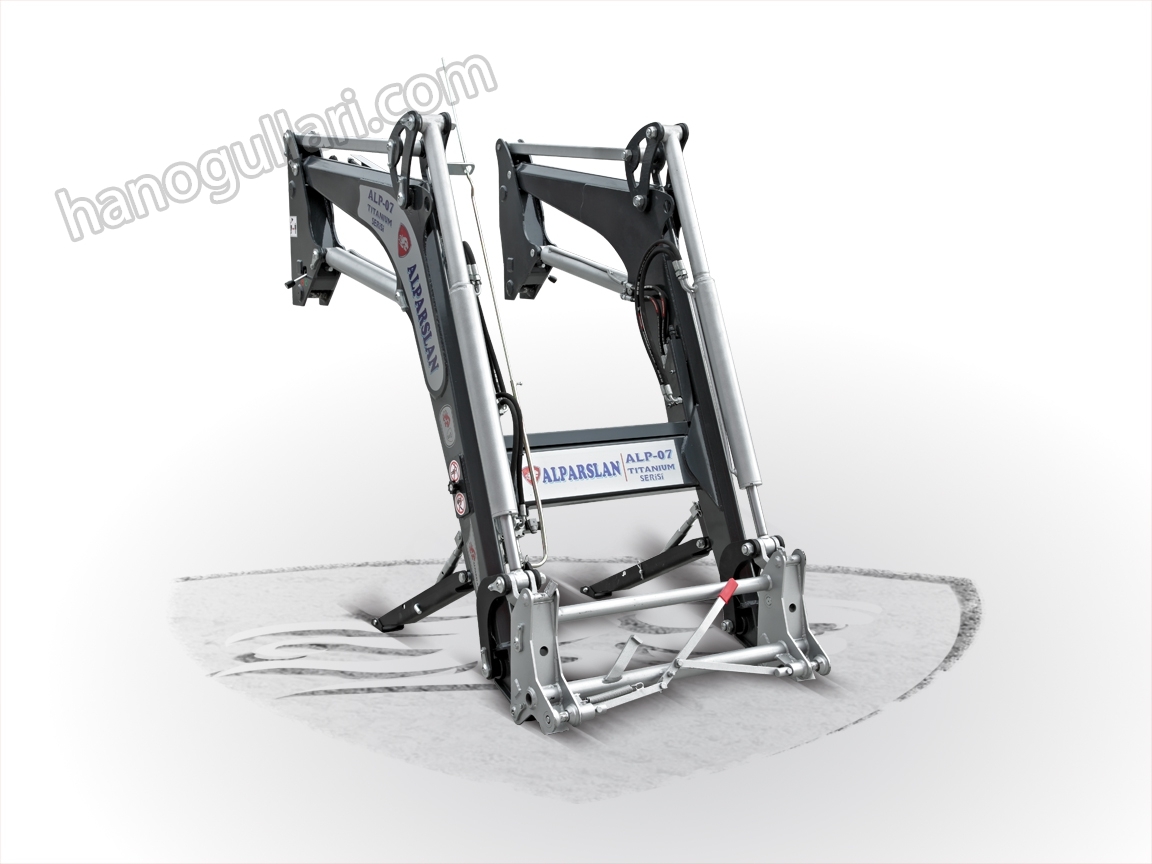

Titanium Series Tractor Front Loader
-
APPLICATION
Titanium Series Tractor Front Loader, 65 to 130 HP (horse) such as New Holland, Case, Tümosan, John Deere, Massey Fergusan, Mc Cormick, Landini, Fendt, Erkunt, Lomborghini, Deutz - Fahr, Same, Stery, Class, Valtra This is a front loader bucket series that can be attached to field-type agricultural tractors. -
OUR FRONT LOADER
It has been produced with different attachment design features, taking into account the use of front loaders mounted on agricultural tractors of factories, construction companies, municipalities, etc., especially in livestock enterprises. You can find attachment options on our website. -
ASSEMBLY
Thanks to the special connection angle design of the sub-chassis, the ideal distribution of the load on the main body of the tractor is ensured and the deterioration of the steering angles is prevented by not removing any part of it. The attachment balancing system is designed as lift / hydraulic in Titanium Series front loader. -
CONTROL ARM (JOYSTICK)
The single joystick is fully ergonomic and, thanks to its small size, allows the operator to easily and fully control all functions of the loader. -
MOVING ATTACHMENT HYDRAULIC VALVE
Electro hydraulic installation is ready for use to provide the need for additional hydraulic movement when using the attachment. -
FAST ATTACHMENT REMOVAL - MOUNTING ADAPTER
It is designed to allow quick and easy replacement of attachments when needed to change according to the job. -
BUSHES AND PINS
Cylindrical bushings used in all joint points are selected from bronze materials that do not wear out even under extreme loads. All pins used in the joint points are made of steel material, galvanized and resistant to high strength with its non-rusting feature.
EXPLANATION | DETAIL |
---|---|
Maximum Lift Height (A) | 3730 mm |
Maximum Lift Height (Floor and Attachment) | 3560 mm |
Discharge Height (B) | 2850 mm |
Transport Angle at Maximum Height (A) | 45 degrees |
Discharge Angle at Maximum Height (B) | 55 degrees |
Gathering Angle at Minimum Height | 45 degrees |
Attachment Breaking Capacity from Ground | 1900 kg |
Maximum Height Carrying Capacity | 1800 kg |
Attachment Balancing System | Mechanical |
Anti-Shock System | Optional |
Joystick Control System | Standard |
Movable Attachment Hydraulic Valve | Standard |
Quick Attachment Removal-Fitting Adapter | Standard |
Front Loader Weight | 610 kg |
Required Tractor Horsepower (HP) Range | 65-130 HP |
