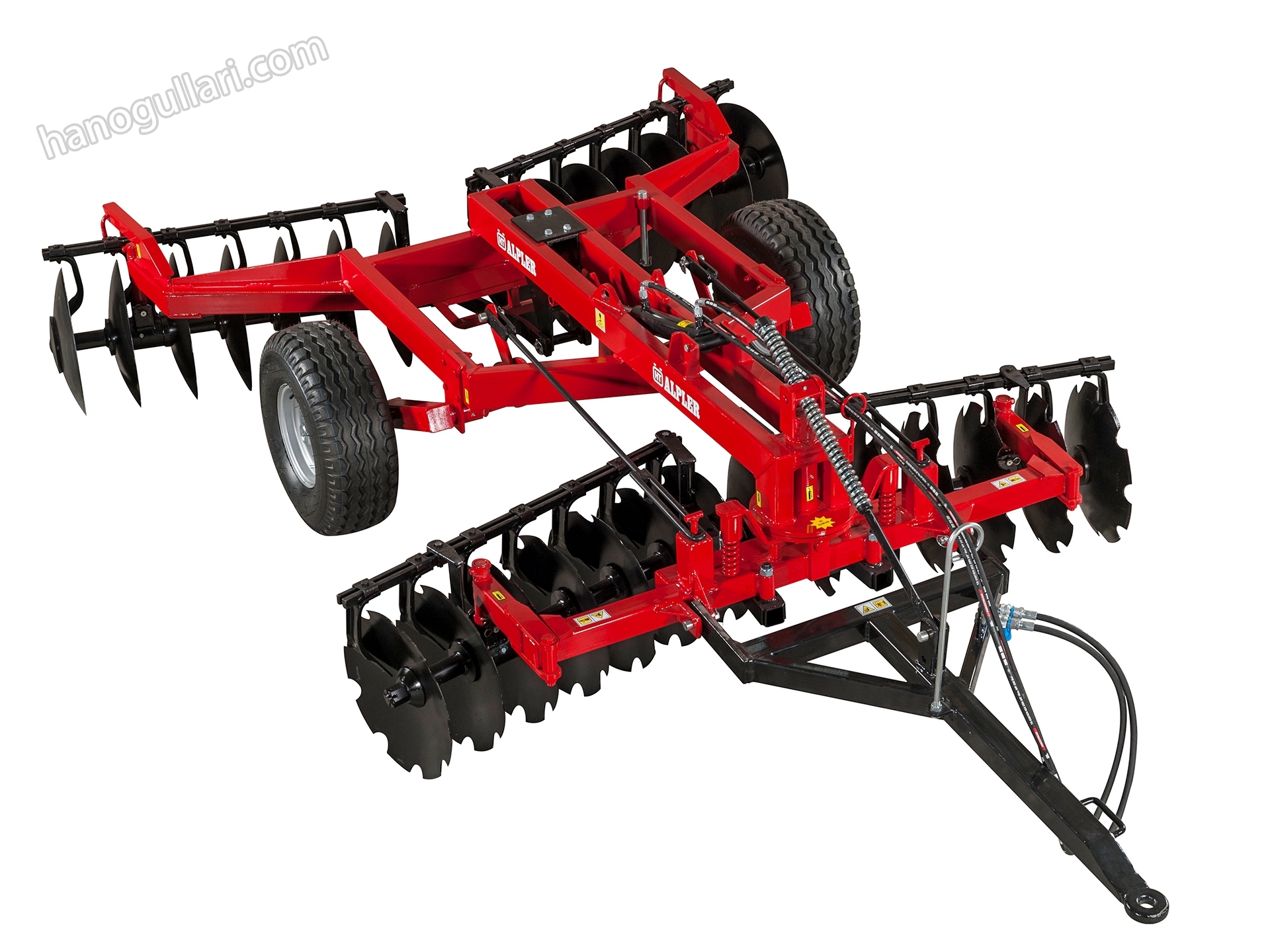

Trailed X Type Disc Harrow (Zeta)
- Hydraulicly controlled transport tyres.
- High resistible, heat treated discs notched at front and plain at rear or alternated. Transport tyres also ensure optimum working depth control.
- Ease and speed of set-up into the work/transport position.
- Easy gang angling adjustment with locking device manual (standard) or hydraulic (optional). Increased inter-disc spacing and disc scrapers preventing trash built up.
- Spacers and bearing housings made from steel for trouble free long working life.
Track closer disc
| MODEL | NUMBER OF DISCS (PIECES) | DISC DIAMETER (CM) | DISTANCE BETWEEN DISCS (CM) | WORKING WIDTH (CM) | WORKING DEPTH (CM) | WEIGTH (KG) | POWER REQUIREMENT (HP) |
|---|---|---|---|---|---|---|---|
| CDHLX20 | 20 | 510 | 19 | 190 | 10 | 920 | 40-60 |
| CDHLX24 | 24 | 510 | 19 | 228 | 10 | 960 | 60-70 |
| CDHLX28 | 28 | 510 | 19 | 266 | 10 | 1020 | 70-80 |
| CDHLX32 | 32 | 510 | 19 | 304 | 10 | 1060 | 80-100 |
| CDHLX36 | 36 | 510 | 19 | 342 | 10 | 1120 | 100-120 |
| |||||||
