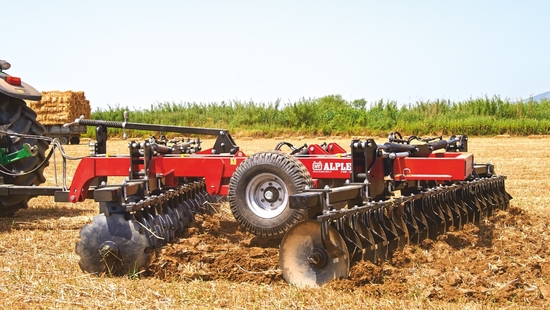

Trailed V Type Heavy Disc Harrow (Folding)

Special alloy, durable, gears and straight drives.
Easy working angle adjustment that can be adjusted mechanically (standard) or hydraulically (optional).
No more clogging problems thanks to the extended disc range and disc scrapers.

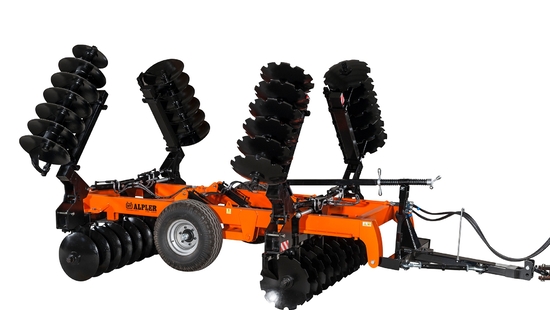

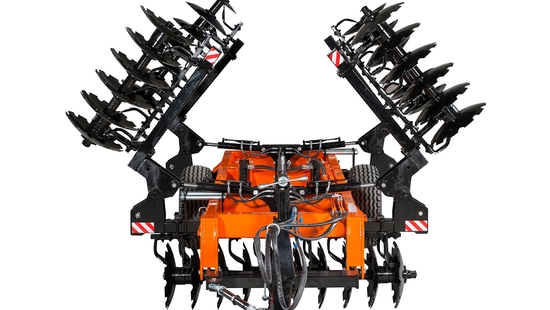

Easy and safe transportation thanks to the hydraulically folding wings.
Steel roller bearings and rollers that provide trouble-free and long-lasting operation.

Hydraulic working angle adjustment

MODEL	NUMBER OF DISCS (PIECES)	DISC DIAMETER (CM)	DISTANCE BETWEEN DISCS (CM)	WORKING WIDTH (CM)	WORKING DEPTH (CM)	WEIGTH (KG)	POWER REQUIREMENT (HP)
CDHV32	32	610	23	368	20	3000	140-150
CDHV34	34	610	23	391	20	3250	150-160
CDHV36	36	610	23	414	20	3360	160-170
CDHV38	38	610	23	437	20	3430	170-180
CDHV40	40	610	23	460	20	3500	180-200
CDHV44	44	610	23	506	20	3640	200-220
CDHV48	48	610	23	552	20	3780	220-240
CDHV52	52	610	23	598	20	3920	240-260
CDHV56	56	610	23	644	20	4060	260-280
CDHV60	60	610	23	690	20	4200	280-300
When placing an order, add the number of throws to the end of model code. Upon the needs of customers we keep the right to make changes on the product specifications. The specified required horsepower may differ up to ± 20% depending on the soil structure and technical characteristics of the tractors (double tractors, etc.) Stated weights may differ up to ± 15% depending on optional parts.
