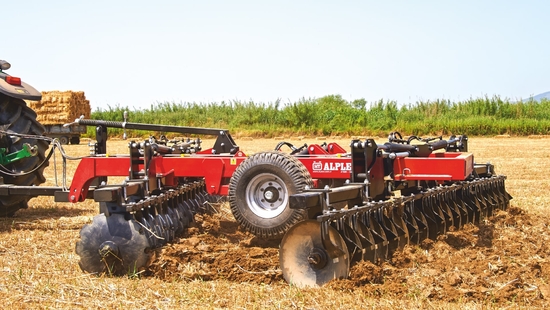

Trailed V Type Heavy Disc Harrow (Folding)
- High resistible, heat treated discs notched at front and plain at rear or alternated. Transport tyres also ensure optimum working depth control.
- Ease and speed of set-up into the work/transport position.
- Increased inter-disc spacing and disc scrapers preventing trash built up.
- Hydrolic folding to reduce the transport widt for easy and safe transportation Spacers and bearing housings made from steel for trouble free long working life.
- Hydraulic folding to reduce the transport width for easy and safe transportation for 32 discs and more.
Hidrolik çalışma açısı ayarı
| MODEL | NUMBER OF DISCS (PIECES) | DISC DIAMETER (CM) | DISTANCE BETWEEN DISCS (CM) | WORKING WIDTH (CM) | WORKING DEPTH (CM) | WEIGTH (KG) | POWER REQUIREMENT (HP) |
|---|---|---|---|---|---|---|---|
| CDHV32 | 32 | 610 | 23 | 368 | 20 | 3000 | 140-150 |
| CDHV34 | 34 | 610 | 23 | 391 | 20 | 3250 | 150-160 |
| CDHV36 | 36 | 610 | 23 | 414 | 20 | 3360 | 160-170 |
| CDHV38 | 38 | 610 | 23 | 437 | 20 | 3430 | 170-180 |
| CDHV40 | 40 | 610 | 23 | 460 | 20 | 3500 | 180-200 |
| CDHV44 | 44 | 610 | 23 | 506 | 20 | 3640 | 200-220 |
| CDHV48 | 48 | 610 | 23 | 552 | 20 | 3780 | 220-240 |
| CDHV52 | 52 | 610 | 23 | 598 | 20 | 3920 | 240-260 |
| CDHV56 | 56 | 610 | 23 | 644 | 20 | 4060 | 260-280 |
| CDHV60 | 60 | 610 | 23 | 690 | 20 | 4200 | 280-300 |
| |||||||
